PRECISION LINEAR & ANGULAR ACCELEROMETERS
All Jewell force-balanced (servo) precision accelerometers are fully self-contained. They connect to a DC power source and a readout or control device for a complete operating system. The output is a high-level DC signal proportional to acceleration and tilt angle sine from as little as ±0.010g to ±20g full range. Jewell precision accelerometers respond to change in velocity as small as 1μg. Hysteresis less than 0.0005% of full range output and vibration rectification less than 50μG/G2 are available
| SMA Series | LCF-2530 Series (Fluid-damped) | LCF-3500 Series (Fluid-damped) | DXA-100/200 Series (Fluid-damped) |
| | | | |

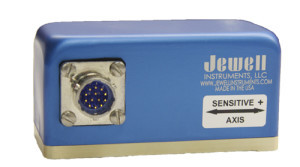

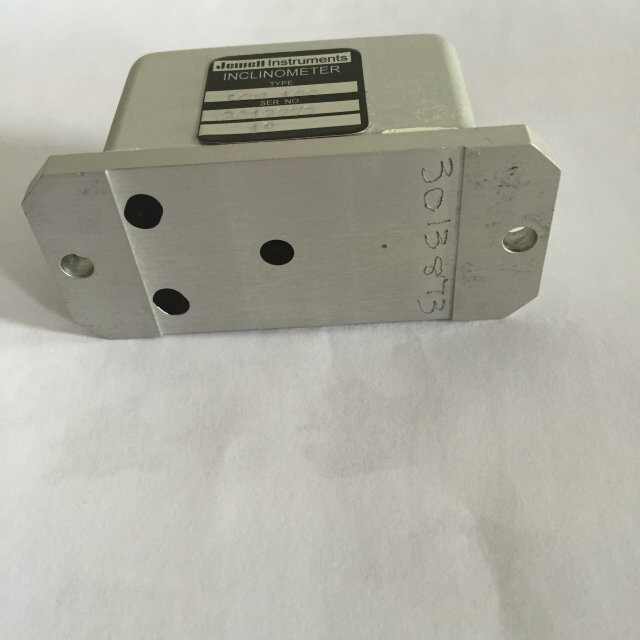

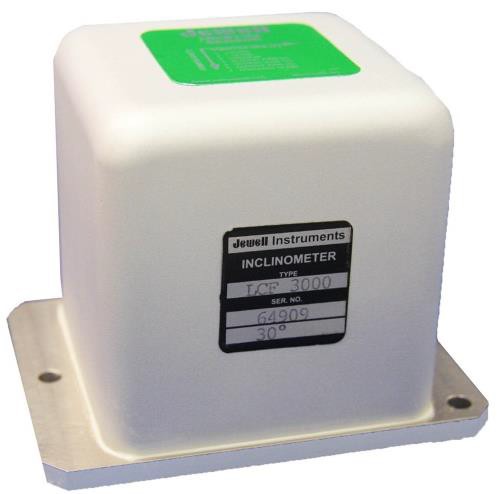

| ? ± 0.25 to ± 2.00g Full Range? Dual-Ended Power Input? ± 5 VDC Output? IP65 Seal? Resolution 3.5 μG? RoHs Compliant? Lower cost than most force balanced sensors? SMA Datasheet (PDF) | ? ± 0.5g to ± 2.0g Full Range? Filtering 5-100 Hz Bandwidth? Exeptional Bias & Scale Factor? High Level ± Vdc Output? 1,500g Shock Capability? Bi-Axis? Download Datasheet (PDF) | ? ± 0.5g to ± 5.0 Full Range? Filtering 5 to 100 Hz Bandwidth? Exceptional Bias & Scale Factor? High Level ± Vdc Output? 1,500 Shock Capability? Tri-Axis? Download Datasheet (PDF) | ? ± 0.25 to ± 2.00g Full Range? RS485 and RS422 Outputs? Mechanical Shock 1500g 1 msec ? sine? Resolution to 8 μG? Meets AREMA/CENELEC Standards? Download Standard Datasheet (PDF)? DXA-100/200-R Datasheet (PDF)? Quick Start Guide (PDF) |
