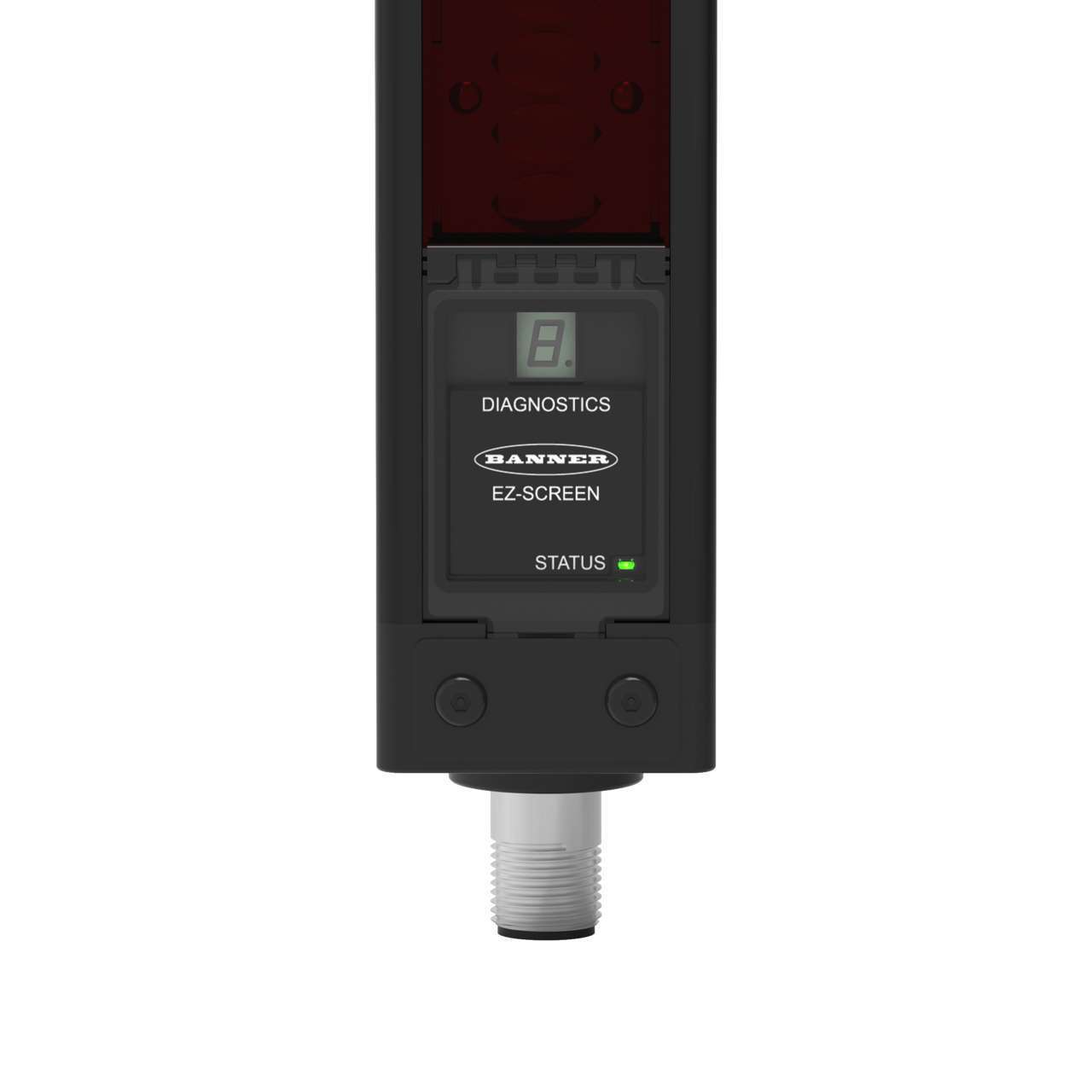

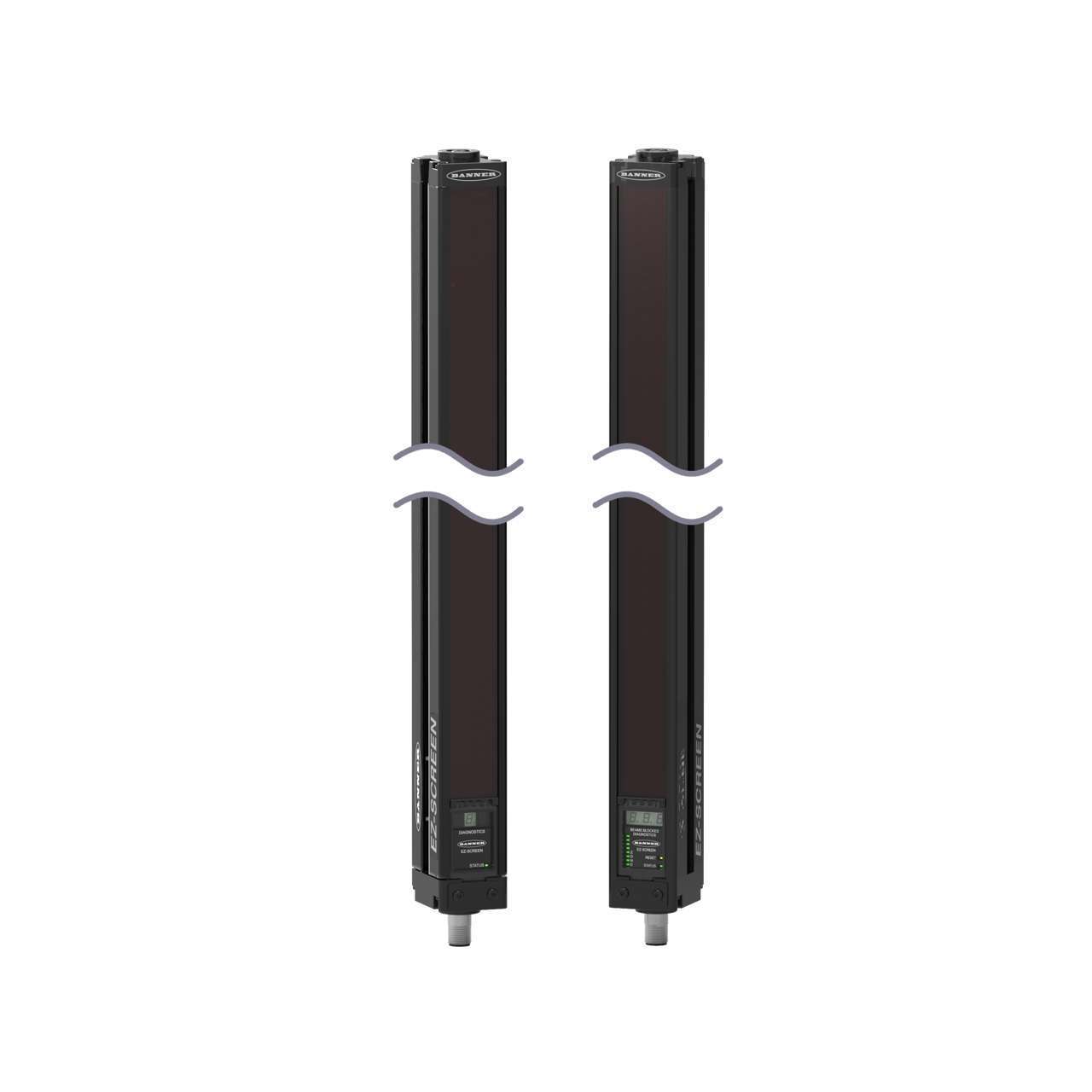

SLSE14-150Q8 EZS EMITTER; 14 mm Resolution
Range: 0.1-6 m (4 in - 20 ft); Height: 150 mm (5.9 in)
Response Time: (Tr) 11 ms; Number of Beams: 20
M12 Integral QD
零部件號： 72359
Defined Area Height Range (mm)<=350
Max Operating Range (m)>4 - <=8
Low ProfileNo
Primary Housing MaterialAluminum
Safety LevelType 4
Effective Aperture AngleType 4 Per IEC 61496-2
Connector TypeM12
Defined Area Height (mm)150
Dimensions WxD (mm)36 x 45.2
Overall Length (mm)262
External Monitoring DeviceNo
Fixed BlankingNo
Housing FinishYellow Polyester
IP RatingIP65
Number of Pins (Receiver/Emitter)8
Operating Distance (m)0.1 - 6
Operating Voltage24 V dc +/- 15%
Operating Temperature0 to +55 deg. C; RH 95%
PL RatingPle
Recovery Time33-220 / 109-800
Resolution (mm)14
Reduced ResolutionNo
Response Time11
SIL RatingSIL3; CL3
Electrical Safety ClassIII
Scan CodeSelectable
Shock10g at 16ms (6000 cycles)
Short ProtectionYes
System TypeEmitter
Vibration10-55 Hz at 0.35 mm
Auxiliary OutputNo
Fault OutputNo
Housing MaterialAluminum; Zinc; Acrylic
OSSD RatingN/A
Supply Current100 mA max.
Trip/Latch OutputN/A
Test InputNo
