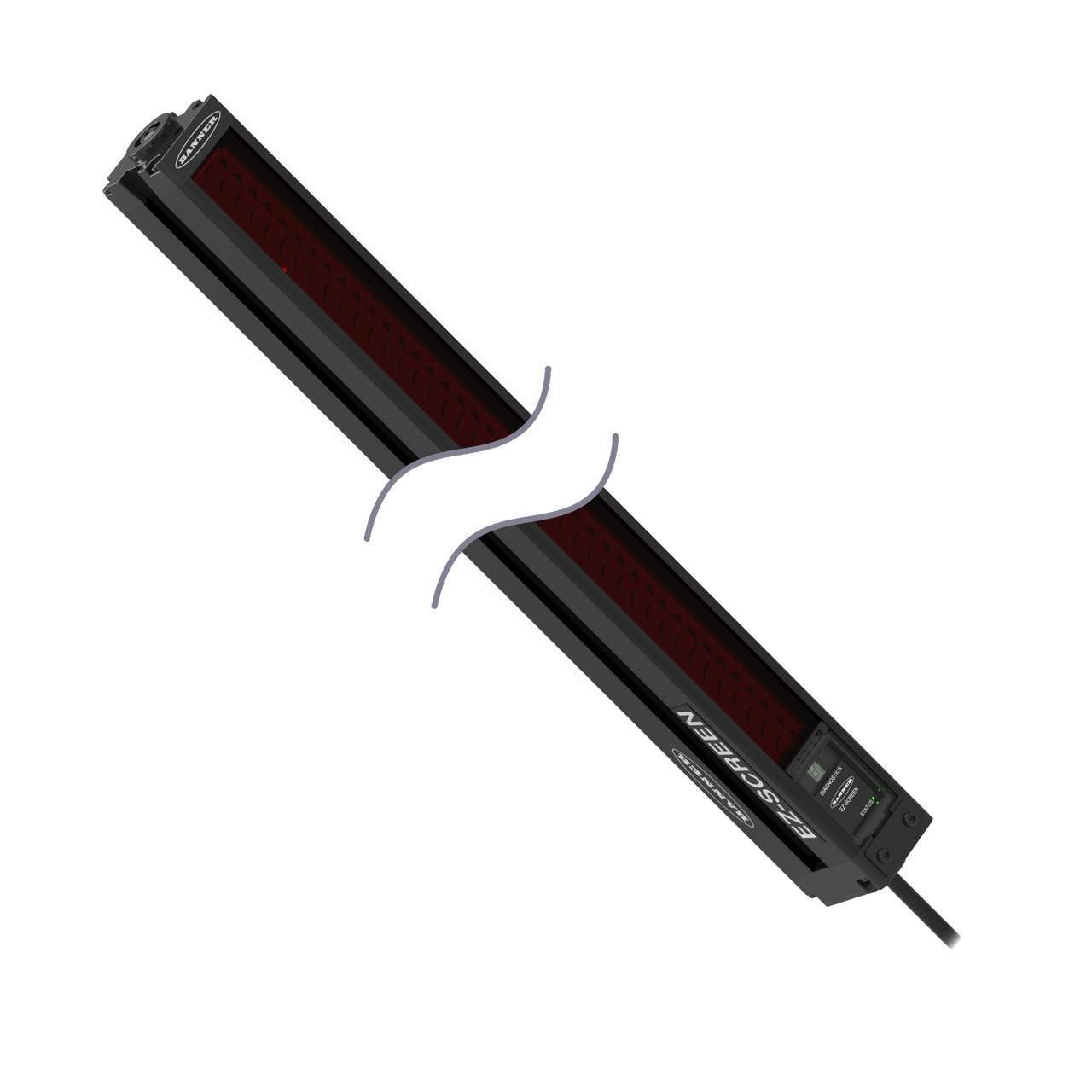

SLSCE14-450P8 EZS EMTR 14 mm ODS x 450 mm QD PIGTAIL
零部件號(hào)： 73905
IP RatingIP65
Defined Area Height Range (mm)>350 - <=650
Max Operating Range (m)>4 - <=8
Low ProfileNo
Primary Housing MaterialAluminum
Safety LevelType 4
Effective Aperture AngleType 4 Per IEC 61496-2
Connector TypeM12 Pigtail (Yellow)
Defined Area Height (mm)450
Dimensions WxD (mm)36 x 45.2
Overall Length (mm)522
External Monitoring DeviceNo
Fixed BlankingNo
Housing FinishYellow Polyester
Number of Pins (Receiver/Emitter)8
Operating Distance (m)0.1 - 6
Operating Voltage24 V dc +/- 15%
Operating Temperature0 to +55 deg. C; RH 95%
PL RatingPle
Recovery Time33-220 / 109-800
Resolution (mm)14
Reduced ResolutionNo
Response Time19
SIL RatingSIL3; CL3
Electrical Safety ClassIII
Scan CodeSelectable
Shock10g at 16ms (6000 cycles)
Short ProtectionYes
System TypeEmitter
Vibration10-55 Hz at 0.35 mm
Auxiliary OutputNo
Fault OutputNo
Housing MaterialAluminum; Zinc; Acrylic
OSSD RatingN/A
Supply Current100 mA max.
Trip/Latch OutputN/A
Test InputNo
Feature: CascadeYes
