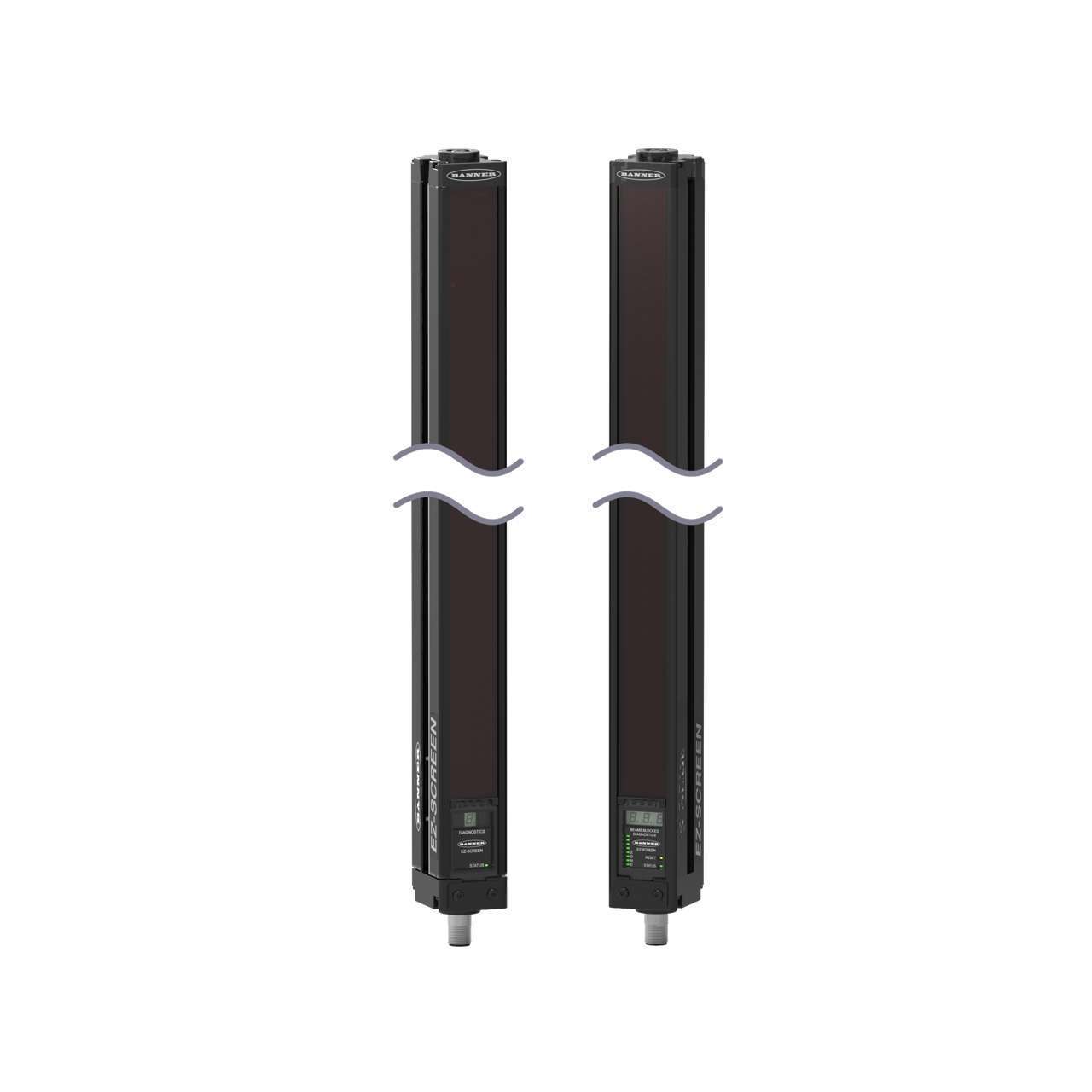

EZ-SCREEN Cascade Pair; 30 mm Resolution
Range: 0.1-18 m (4 in - 60 ft); Height: 750 mm (29.5 in)
Response Time (Tr): 17 ms; Number of Beams: 50
M12 Integral QDs
零部件號(hào)： 72447
Defined Area Height Range (mm)>650 - <=950
Max Operating Range (m)>8 - <=20
Low ProfileNo
Primary Housing MaterialAluminum
Safety LevelType 4
Effective Aperture AngleType 4 Per IEC 61496-2
Connector TypeM12
Defined Area Height (mm)750
Dimensions WxD (mm)36 x 45.2
Overall Length (mm)821
External Monitoring Device1 or 2 Channel
Fixed BlankingYes
Housing FinishYellow Polyester
IP RatingIP65
Number of Pins (Receiver/Emitter)8
Operating Distance (m)0.1 - 18
Operating Voltage24 V dc +/- 15%
Operating Temperature0 to +55 deg. C; RH 95%
PL RatingPle
Recovery Time25-152 / 81-495
Resolution (mm)30
Reduced ResolutionYes
Response Time17
SIL RatingSIL3; CL3
Electrical Safety ClassIII
Scan CodeSelectable
Shock10g at 16ms (6000 cycles)
Short ProtectionYes
System TypeEmitter/Receiver Pair
Vibration10-55 Hz at 0.35 mm
Auxiliary OutputYes
Fault OutputNo
Housing MaterialAluminum; Zinc; Acrylic
OSSD Rating24 V dc at 0.5 A each
Supply Current375 mA max.
Trip/Latch OutputSelectable
Test InputYes
Feature: CascadeYes
