Features– Size ?58 mm– Precise optical sensing– Output signal level TTL or HTL– Clamping or synchro flange– Connection axial, radial or tangential– Pulses per revolution up to 5000– High protection up to IP 67– High resistance to shock and vibrations

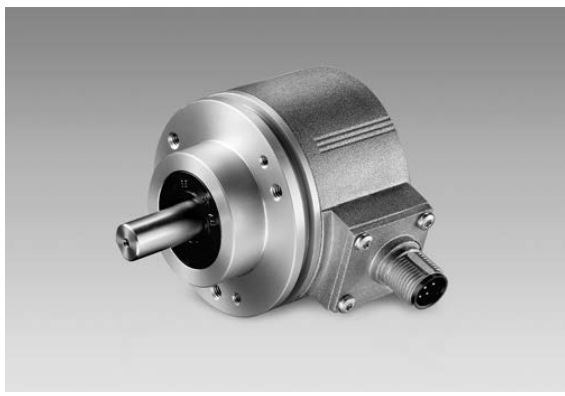

Technical data - electrical ratingsVoltage supply 5 VDC ±5 %8...30 VDC4.75...30 VDCReverse polarity protection YesShort-circuit proof Yes (HTL)Yes (TTL, max. 1 s and 1 signal)Consumption w/o load ≤70 mAPulses per revolution 100...5000Phase shift 90° ±10°Scan ratio 40...60 %Reference signal Zero pulse, width 90° ±10 %Sensing method OpticalOutput frequency ≤300 kHz (TTL)≤160 kHz (HTL)Output signals A+, B+, R+, A-, B-, ROutput stages TTL/RS422HTL/push-pullInterference immunity DIN EN 61000-6-2Emitted interference DIN EN 61000-6-3Approval UL 508 / CSA 22.2EIL580 - solid shaft - OptoPulse?Technical data - mechanical designSize (flange) ?58 mmAdmitted shaft load ≤40 N axial≤80 N radialProtection DIN EN 60529 IP 65 (without shaft seal),IP 67 (with shaft seal)Operating speed ≤6000 rpm (+20 °C, IP 67)≤12000 rpm (+20 °C, IP 65)Starting torque ≤0.015 Nm (+20 °C, IP 65)≤0.02 Nm (+20 °C, IP 67)Materials Housing: aluminium die-castFlange: aluminiumSolid shaft: stainless steelOperating temperature -40...+85 °CRelative humidity 90 % non-condensingResistance DIN EN 60068-2-6Vibration 30 g, 10-2000 HzDIN EN 60068-2-27Shock 300 g, 6 msConnection Flange connector M12, 8-pinFlange connector M23, 12-pinCableWeight approx. 300 gEIL580 - clamping flangeShaft type ?10 x 20 mm, solid shaft withedge (clamping flange)?9.525 mm (3/8") x 20 mm,solid shaft with edgeEIL580 - synchro flangeShaft type ?6 x 10 mm, solid shaft with flatedge (synchro flange)
