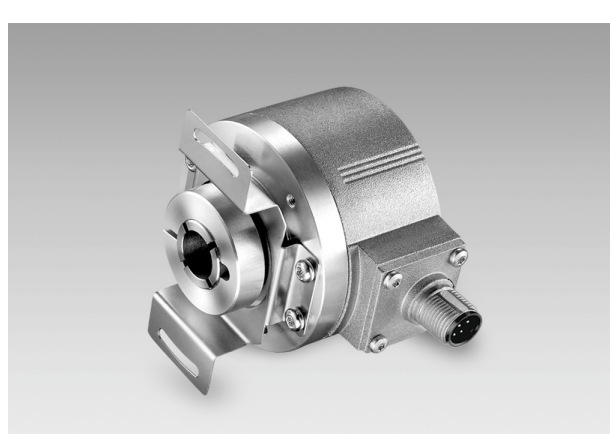

Overview■ Size ?58 mm■ Precise optical sensing (interpolated)■ Output signal level programmable (TTL or HTL)■ Through hollow shaft, ?8…15 mm■ Connection radial or tangential■ Pulses per revolution 1...65536, programmable■ High protection up to IP 67■ High resistance to shock and vibrations

Technical dataTechnical data - electrical ratingsVoltage supply 4.75...30 VDCReverse polarity protection YesShort-circuit proof YesConsumption w/o load ≤70 mAInitializing time ≤ 30 ms after power onPulses per revolution 1 … 65536Duty cycle 45…55 % typical at 1024, 2048 ppr (further see table Duty cycle)Reference signal Zero pulse 90° or 180°Sensing method OpticalOutput frequency ≤300 kHz (TTL)≤160 kHz (HTL)Output signals A+, B+, R+, A-, B-, ROutput stages TTL/RS422HTL/push-pullProgrammable parameters Output level TTL/HTLPulse number 1...65536Zero pulse width 90°/180°Zero pulse positionSignal sequenceInterference immunity DIN EN 61000-6-2Emitted interference DIN EN 61000-6-3Technical data - electrical ratingsApproval UL 508 / CSA 22.2Technical data - mechanical designSize (flange) ?58 mmShaft type ?8...15 mm (through hollow shaft)?9.52 mm (through hollow shaft)?12.7 mm (through hollow shaft)Protection EN 60529 IP 65 (without shaft seal)IP 67 (with shaft seal)Operating speed ≤3000 rpm (+20 °C, IP 67)≤6000 rpm (+20 °C, IP 65)Starting torque ≤0,025 Nm (+20 °C, IP 65)≤0,03 Nm (+20 °C, IP 67)Material Housing: aluminium die-castFlange: aluminiumOperating temperature -40...+100 °CRelative humidity 90 % non-condensingResistance DIN EN 60068-2-6 Vibration 30 g, 10-2000 HzDIN EN 60068-2-27 Shock 250 g, 6 msConnection Flange connector M12, 8-pinFlange connector M23, 12-pinCableWeight approx. 300 g
