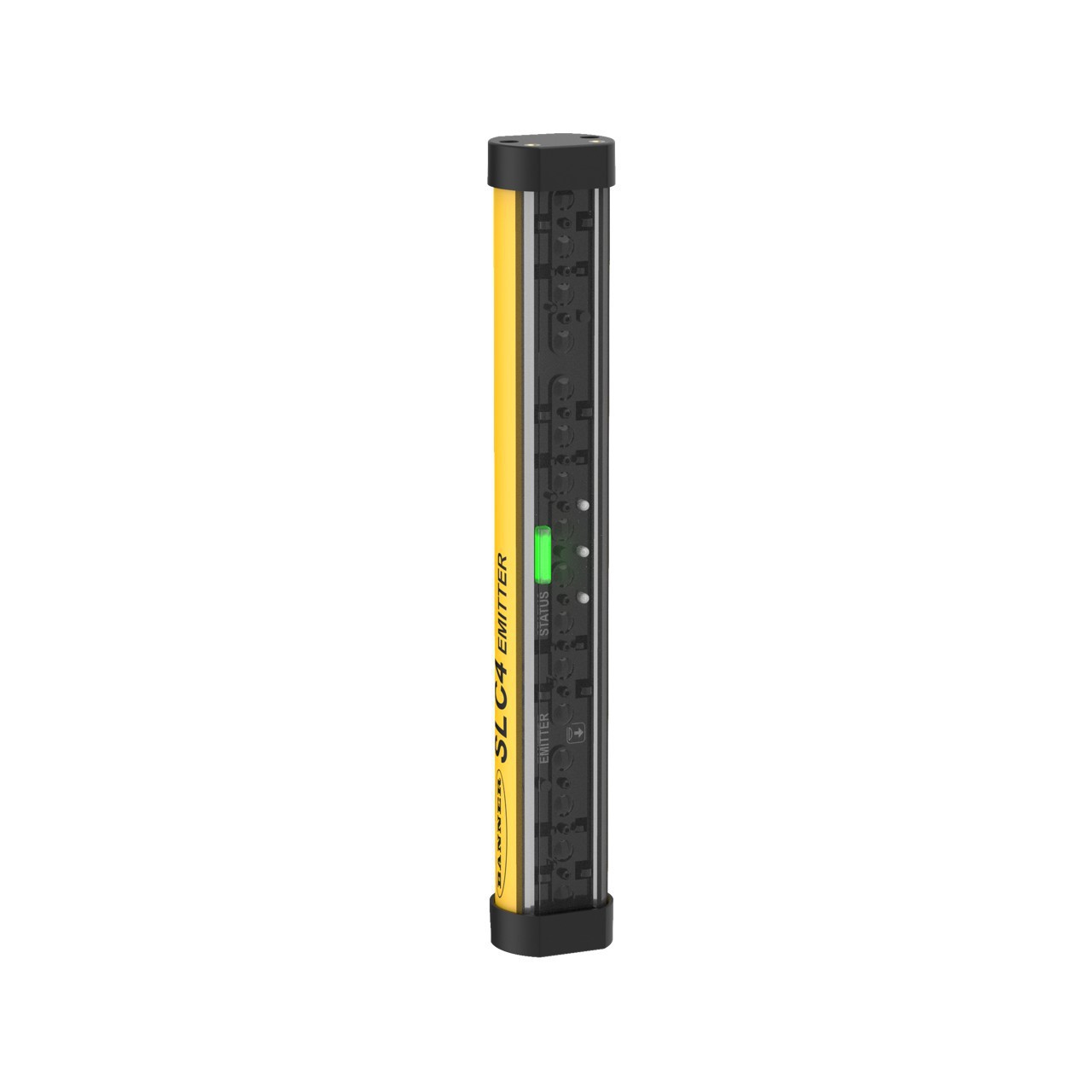

SLC4 Type 4 Safety Light Curtain, Emitter
Resolution: 14 mm; Response (Tr): 8 ms
Range: 0.1 to 2 m (4 in to 6.5 ft); Height: 160 mm (6.3 in)
300 mm (1 ft) 4-pin M12 Pigtail QD
Mounting Hardware Ordered Separately
零部件號： 804715
IP RatingIP65
Defined Area Height Range (mm)<=350
Max Operating Range (m)<=4
Primary Housing MaterialPolycarbonate
Safety LevelType 4
Effective Aperture AngleType 4 Per IEC 61496-2
Connector TypeM12 Pigtail (Black)
Defined Area Height (mm)160
Dimensions WxD (mm)26.7 x 22.1
Overall Length (mm)173.2
External Monitoring DeviceNo
Fixed BlankingNo
Housing FinishClear Polycarbonate/Yellow Polyester
Number of Pins (Receiver/Emitter)4
Operating Distance (m)0.1 - 2
Operating Voltage24 V dc +/- 15%
Operating Temperature-20 to +55 deg. C; RH 95%
PL RatingPle
Recovery TimeN/A
Resolution (mm)14
Reduced ResolutionNo
SIL RatingSIL3; CL3
Electrical Safety ClassIII
Scan CodeNone
Shock10g at 16ms (6000 cycles)
Short ProtectionYes
System TypeEmitter
Vibration10-55 Hz at 0.35 mm
Auxiliary OutputNo
Fault OutputNo
Housing MaterialAluminum, Polycarbonate
OSSD RatingN/A
Supply Current35
Trip/Latch OutputN/A
Test InputNo
Feature: End-to-End SensingYes
