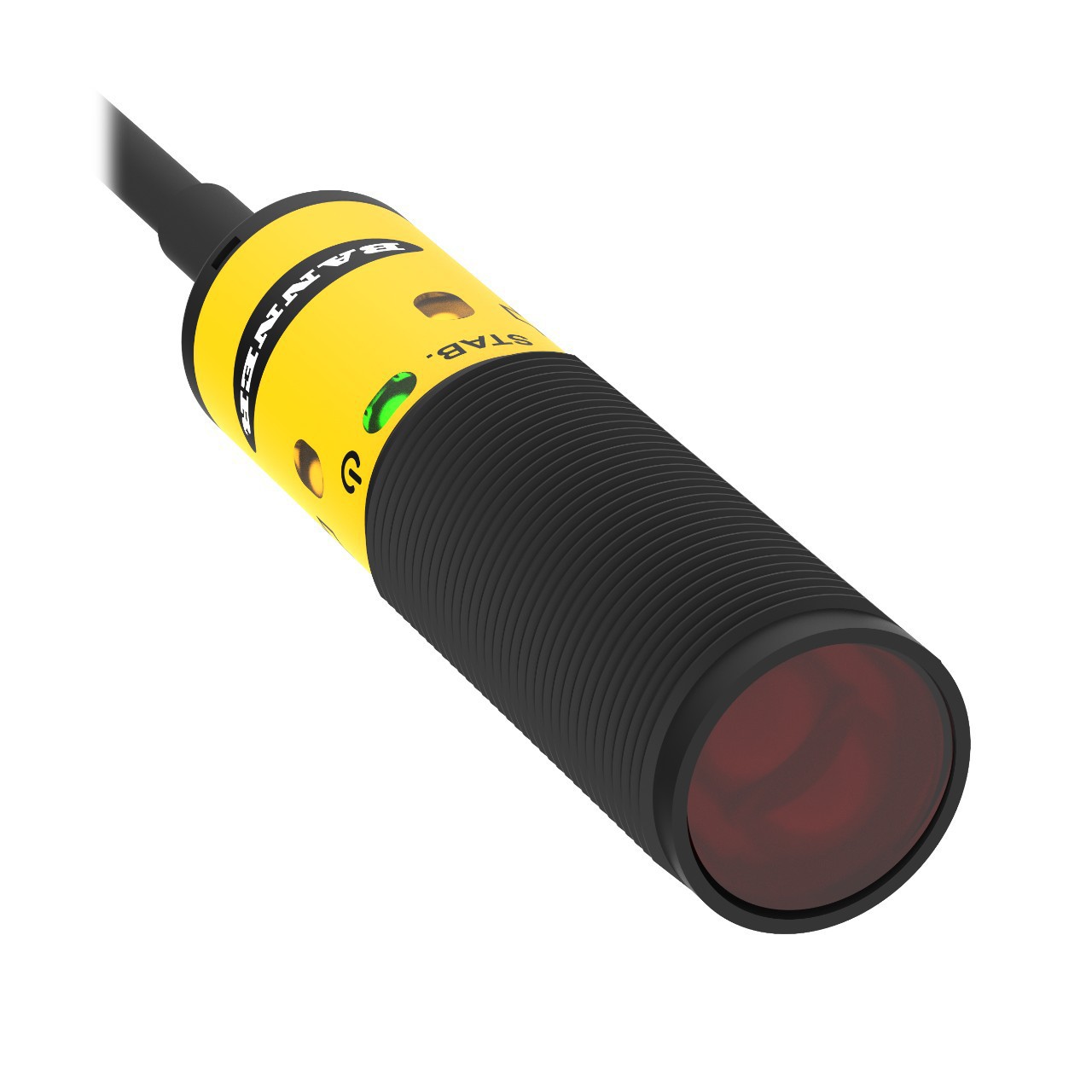

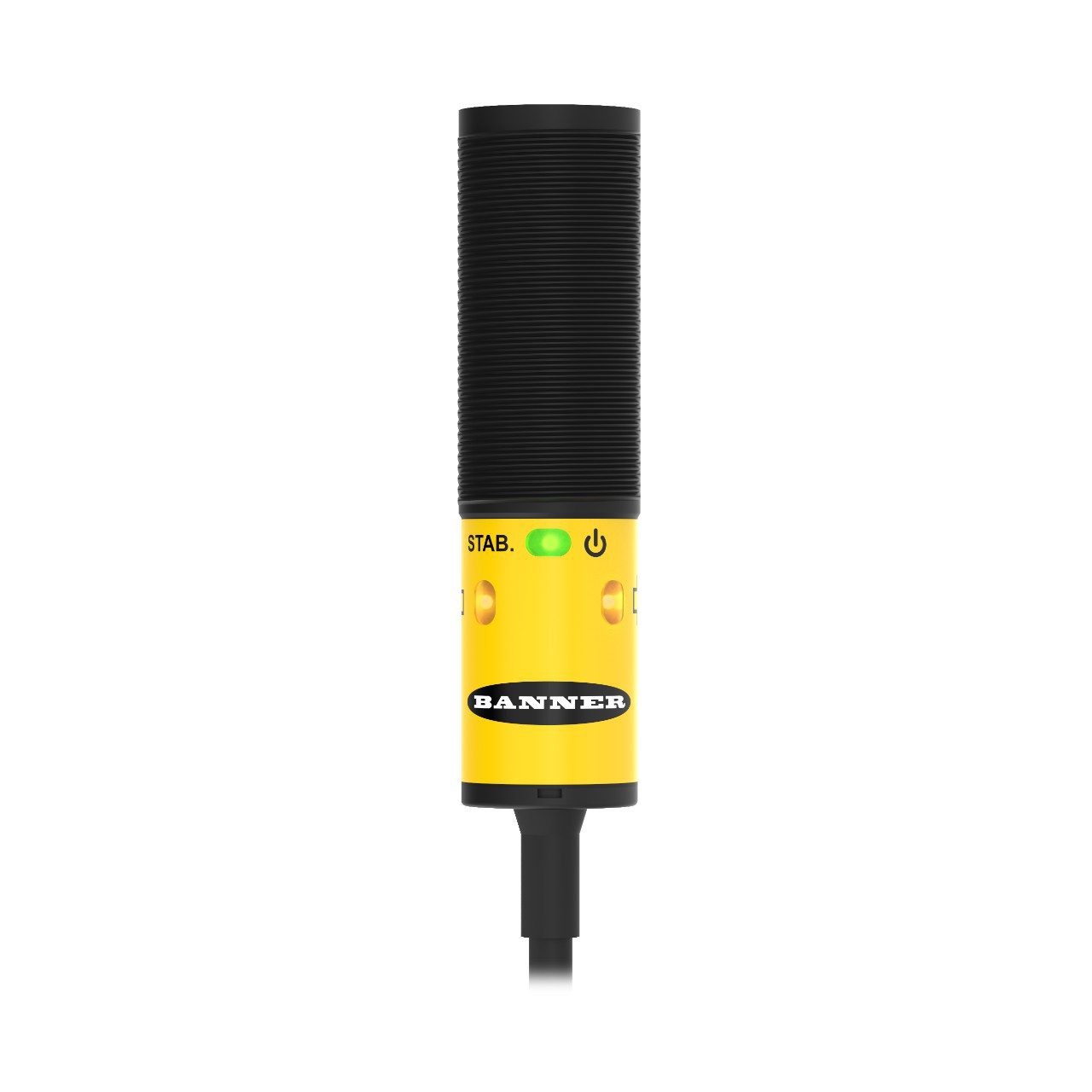

S18-2 Series: Emitter; Long Range
Range: 25 m; Input: 10-30 V dc
Outputs: none
2 m 2-conductor PVC Cable
零部件號(hào)： 42190
Sensing BeamVisible Red LED
Cable Length (m)2
PowerDC
Sensing Mode (General)Opposed
Sensing Mode (Detailed)Emitter
Housing StyleBarrel
Primary Housing MaterialThermoplastic
Max Sensing Distance (mm)25000
Power Supply/Supply Voltage10-30 V dc
ConnectionCable
Min Op. Temp. (°C)-40
OperationN/A
Max Op. Temp. (°C)70
Output response time (ms)1.5
Special Feature: Intrinsically SafeNo
Special Feature: Remote TeachNo
Special Feature: Water DetectionNo
Sensing Beam Wavelength645
Delay at Power-up (ms)100
Repeatability (μs)170
Number of Pins2
IP RatingIP67
NEMA RatingN/A
Max Op. Relative Humidity [%]95% @ 50°C
Lens MaterialAcrylic
AdjustmentsN/A
Barrel Diameter (mm)18
IndicatorLEDs
Opposed Mode Emitter/ReceiverEmitter
Feature: Timing (Hold/Delay)No
Feature: Ecolab CertifiedYes
Feature: AudibleNo
Feature: Quick DisconnectNo
